On Mon, Aug 14, 2017 at 3:07 PM Martin Pieuchot <m...@openbsd.org> wrote: > > I'd like to improve the fairness of the scheduler, with the goal of > mitigating userland starvations. For that the kernel needs to have > a better understanding of the amount of executed time per task. > > The smallest interval currently usable on all our architectures for > such accounting is a tick. With the current HZ value of 100, this > smallest interval is 10ms. I'd like to bump this value to 1000. > > The diff below intentionally bump other `hz' value to keep current > ratios. We certainly want to call schedclock(), or a similar time > accounting function, at a higher frequency than 16 Hz. However this > will be part of a later diff. > > I'd be really interested in test reports. mlarkin@ raised a good > question: is your battery lifetime shorter with this diff? > > Comments, oks? >

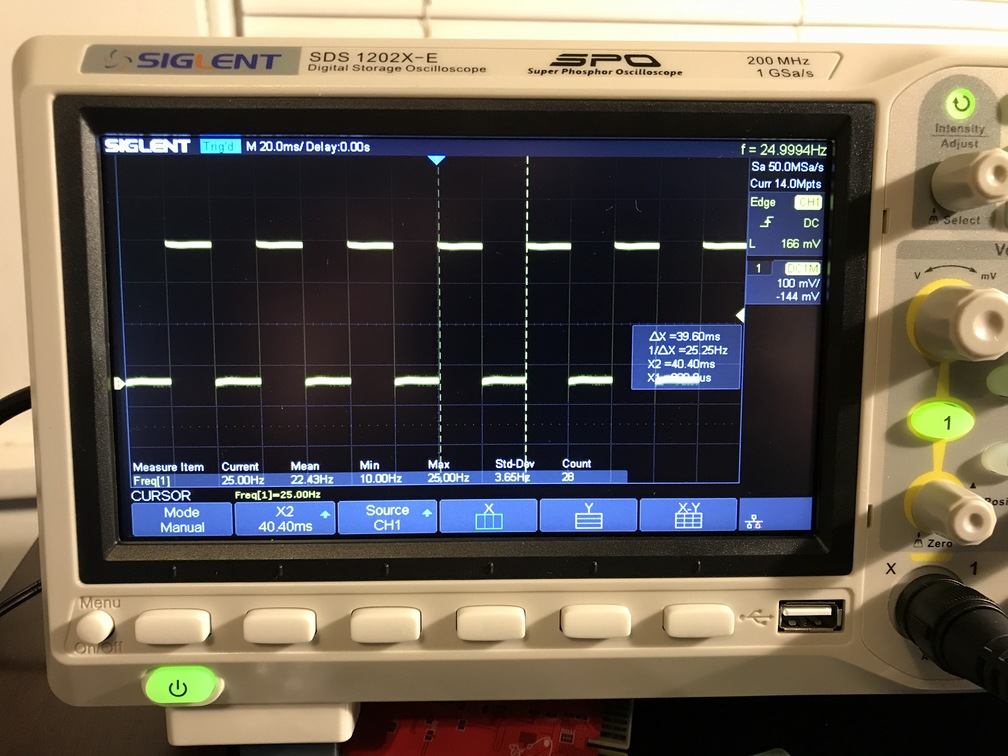

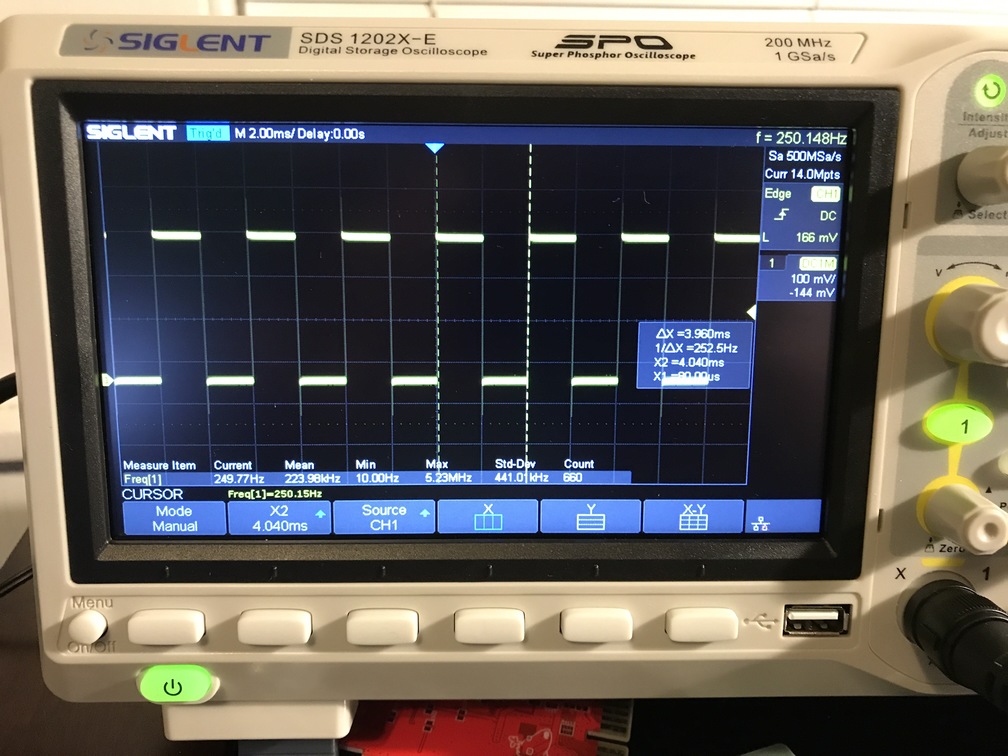

I'd like to revisit this patch. It makes our armv7 platform more usable for what it is meant to do, i.e. be a microcontroller. I imagine on other platforms it would accrue similar benefits as well. I've tested this patch and found delightfully proportional results. Currently, at HZ = 100, the minimum latency for a sleep calll from userspace is about 10ms: https://ce.gl/baseline.jpg After the patch, which bumps HZ from 100 --> 1000, we see a tenfold decrease in this latency: https://ce.gl/with-mpi-hz-patch.jpg This signal is generated with gpio(4) ioctl calls from userspace, e.g.: for(;;) { HI(pin); usleep(1); LO(pin(); usleep(1); } I'd like to see more folks test and other devs to share their thoughts: What are the risks associated with bumping HZ globally? Drawbacks? Reasons for hesitation? Thanks, Ian Sutton > Index: conf/param.c > =================================================================== > RCS file: /cvs/src/sys/conf/param.c,v > retrieving revision 1.37 > diff -u -p -r1.37 param.c > --- conf/param.c 6 May 2016 19:45:35 -0000 1.37 > +++ conf/param.c 14 Aug 2017 17:03:23 -0000 > @@ -76,7 +76,7 @@ > # define DST 0 > #endif > #ifndef HZ > -#define HZ 100 > +#define HZ 1000 > #endif > int hz = HZ; > int tick = 1000000 / HZ; > Index: kern/kern_clock.c > =================================================================== > RCS file: /cvs/src/sys/kern/kern_clock.c,v > retrieving revision 1.93 > diff -u -p -r1.93 kern_clock.c > --- kern/kern_clock.c 22 Jul 2017 14:33:45 -0000 1.93 > +++ kern/kern_clock.c 14 Aug 2017 19:50:49 -0000 > @@ -406,12 +406,11 @@ statclock(struct clockframe *frame) > if (p != NULL) { > p->p_cpticks++; > /* > - * If no schedclock is provided, call it here at ~~12-25 Hz; > + * If no schedclock is provided, call it here; > * ~~16 Hz is best > */ > if (schedhz == 0) { > - if ((++curcpu()->ci_schedstate.spc_schedticks & 3) == > - 0) > + if ((spc->spc_schedticks & 0x3f) == 0) > schedclock(p); > } > } > Index: arch/amd64/isa/clock.c > =================================================================== > RCS file: /cvs/src/sys/arch/amd64/isa/clock.c,v > retrieving revision 1.25 > diff -u -p -r1.25 clock.c > --- arch/amd64/isa/clock.c 11 Aug 2017 21:18:11 -0000 1.25 > +++ arch/amd64/isa/clock.c 14 Aug 2017 17:19:35 -0000 > @@ -303,8 +303,8 @@ rtcdrain(void *v) > void > i8254_initclocks(void) > { > - stathz = 128; > - profhz = 1024; > + stathz = 1024; > + profhz = 8192; > > isa_intr_establish(NULL, 0, IST_PULSE, IPL_CLOCK, clockintr, > 0, "clock"); > @@ -321,7 +321,7 @@ rtcstart(void) > { > static struct timeout rtcdrain_timeout; > > - mc146818_write(NULL, MC_REGA, MC_BASE_32_KHz | MC_RATE_128_Hz); > + mc146818_write(NULL, MC_REGA, MC_BASE_32_KHz | MC_RATE_1024_Hz); > mc146818_write(NULL, MC_REGB, MC_REGB_24HR | MC_REGB_PIE); > > /* > @@ -577,10 +577,10 @@ setstatclockrate(int arg) > if (initclock_func == i8254_initclocks) { > if (arg == stathz) > mc146818_write(NULL, MC_REGA, > - MC_BASE_32_KHz | MC_RATE_128_Hz); > + MC_BASE_32_KHz | MC_RATE_1024_Hz); > else > mc146818_write(NULL, MC_REGA, > - MC_BASE_32_KHz | MC_RATE_1024_Hz); > + MC_BASE_32_KHz | MC_RATE_8192_Hz); > } > } > > Index: arch/armv7/omap/dmtimer.c > =================================================================== > RCS file: /cvs/src/sys/arch/armv7/omap/dmtimer.c,v > retrieving revision 1.6 > diff -u -p -r1.6 dmtimer.c > --- arch/armv7/omap/dmtimer.c 22 Jan 2015 14:33:01 -0000 1.6 > +++ arch/armv7/omap/dmtimer.c 14 Aug 2017 17:16:01 -0000 > @@ -296,8 +296,8 @@ dmtimer_cpu_initclocks() > { > struct dmtimer_softc *sc = dmtimer_cd.cd_devs[1]; > > - stathz = 128; > - profhz = 1024; > + stathz = 1024; > + profhz = 8192; > > sc->sc_ticks_per_second = TIMER_FREQUENCY; /* 32768 */ > > Index: arch/armv7/omap/gptimer.c > =================================================================== > RCS file: /cvs/src/sys/arch/armv7/omap/gptimer.c,v > retrieving revision 1.4 > diff -u -p -r1.4 gptimer.c > --- arch/armv7/omap/gptimer.c 20 Jun 2014 14:08:11 -0000 1.4 > +++ arch/armv7/omap/gptimer.c 14 Aug 2017 17:15:44 -0000 > @@ -283,8 +283,8 @@ void > gptimer_cpu_initclocks() > { > // u_int32_t now; > - stathz = 128; > - profhz = 1024; > + stathz = 1024; > + profhz = 8192; > > ticks_per_second = TIMER_FREQUENCY; > > Index: arch/armv7/sunxi/sxitimer.c > =================================================================== > RCS file: /cvs/src/sys/arch/armv7/sunxi/sxitimer.c,v > retrieving revision 1.10 > diff -u -p -r1.10 sxitimer.c > --- arch/armv7/sunxi/sxitimer.c 21 Jan 2017 08:26:49 -0000 1.10 > +++ arch/armv7/sunxi/sxitimer.c 14 Aug 2017 17:15:04 -0000 > @@ -189,9 +189,8 @@ sxitimer_attach(struct device *parent, s > bus_space_write_4(sxitimer_iot, sxitimer_ioh, > TIMER_CTRL(STATTIMER), TIMER_OSC24M); > > - /* 100/1000 or 128/1024 ? */ > - stathz = 128; > - profhz = 1024; > + stathz = 1024; > + profhz = 8192; > sxitimer_setstatclockrate(stathz); > > ival = sxitimer_stat_tpi = freq / stathz; > Index: arch/i386/isa/clock.c > =================================================================== > RCS file: /cvs/src/sys/arch/i386/isa/clock.c,v > retrieving revision 1.51 > diff -u -p -r1.51 clock.c > --- arch/i386/isa/clock.c 25 Jan 2017 08:23:50 -0000 1.51 > +++ arch/i386/isa/clock.c 14 Aug 2017 17:19:18 -0000 > @@ -226,8 +226,8 @@ rtcintr(void *arg) > if (stathz == 0) { > extern int psratio; > > - stathz = 128; > - profhz = 1024; > + stathz = 1024; > + profhz = 8192; > psratio = profhz / stathz; > } > > @@ -448,7 +448,7 @@ rtcstart(void) > { > static struct timeout rtcdrain_timeout; > > - mc146818_write(NULL, MC_REGA, MC_BASE_32_KHz | MC_RATE_128_Hz); > + mc146818_write(NULL, MC_REGA, MC_BASE_32_KHz | MC_RATE_1024_Hz); > mc146818_write(NULL, MC_REGB, MC_REGB_24HR | MC_REGB_PIE); > > /* > @@ -698,10 +698,10 @@ setstatclockrate(int arg) > if (initclock_func == i8254_initclocks) { > if (arg == stathz) > mc146818_write(NULL, MC_REGA, > - MC_BASE_32_KHz | MC_RATE_128_Hz); > + MC_BASE_32_KHz | MC_RATE_1024_Hz); > else > mc146818_write(NULL, MC_REGA, > - MC_BASE_32_KHz | MC_RATE_1024_Hz); > + MC_BASE_32_KHz | MC_RATE_8192_Hz); > } > } > > Index: arch/loongson/dev/glx.c > =================================================================== > RCS file: /cvs/src/sys/arch/loongson/dev/glx.c,v > retrieving revision 1.10 > diff -u -p -r1.10 glx.c > --- arch/loongson/dev/glx.c 15 Aug 2015 22:25:22 -0000 1.10 > +++ arch/loongson/dev/glx.c 14 Aug 2017 17:06:05 -0000 > @@ -124,7 +124,7 @@ glx_init(pci_chipset_tag_t pc, pcitag_t > /* > * MFGPT runs on powers of two, adjust the hz value accordingly. > */ > - stathz = hz = 128; > + stathz = hz = 1024; > } > > uint64_t > Index: arch/macppc/macppc/clock.c > =================================================================== > RCS file: /cvs/src/sys/arch/macppc/macppc/clock.c,v > retrieving revision 1.40 > diff -u -p -r1.40 clock.c > --- arch/macppc/macppc/clock.c 13 Jun 2015 07:16:36 -0000 1.40 > +++ arch/macppc/macppc/clock.c 14 Aug 2017 17:13:15 -0000 > @@ -302,8 +302,8 @@ cpu_initclocks() > > ticks_per_intr = ticks_per_sec / hz; > > - stathz = 100; > - profhz = 1000; /* must be a multiple of stathz */ > + stathz = 1000; > + profhz = 10000; /* must be a multiple of stathz */ > > /* init secondary clock to stathz */ > statint = ticks_per_sec / stathz; > Index: arch/sparc64/sparc64/clock.c > =================================================================== > RCS file: /cvs/src/sys/arch/sparc64/sparc64/clock.c,v > retrieving revision 1.59 > diff -u -p -r1.59 clock.c > --- arch/sparc64/sparc64/clock.c 30 Apr 2017 16:45:45 -0000 1.59 > +++ arch/sparc64/sparc64/clock.c 14 Aug 2017 20:00:26 -0000 > @@ -647,8 +647,8 @@ cpu_initclocks(void) > if (stathz == 0) > stathz = hz; > if (1000000 % stathz) { > - printf("cannot get %d Hz statclock; using 100 Hz\n", stathz); > - stathz = 100; > + printf("cannot get %d Hz statclock; using 1000 Hz\n", stathz); > + stathz = 1000; > } > > profhz = stathz; /* always */ > @@ -665,7 +665,7 @@ cpu_initclocks(void) > schedint.ih_clr = NULL; > schedint.ih_arg = 0; > schedint.ih_pending = 0; > - schedhz = stathz/4; > + schedhz = 16; > > /* > * Enable timers > @@ -867,7 +867,7 @@ statintr(cap) > newint = statmin + r; > > if (schedhz) > - if ((++ci->ci_schedstate.spc_schedticks & 3) == 0) > + if ((++ci->ci_schedstate.spc_schedticks & 0x3f) == 0) > send_softint(-1, PIL_SCHED, &schedint); > stxa((vaddr_t)&timerreg_4u.t_timer[1].t_limit, ASI_NUCLEUS, > tmr_ustolim(newint)|TMR_LIM_IEN|TMR_LIM_RELOAD); >
