This is an automated email from the ASF dual-hosted git repository.
zjffdu pushed a commit to branch master
in repository https://gitbox.apache.org/repos/asf/zeppelin.git
The following commit(s) were added to refs/heads/master by this push:
new d0404f3 [ZEPPELIN-4590]. Miss line break for IRInterpreter
d0404f3 is described below
commit d0404f3484662958e22e7c25ba565b64798be214
Author: Jeff Zhang <zjf...@apache.org>
AuthorDate: Sun Feb 2 15:34:34 2020 +0800
[ZEPPELIN-4590]. Miss line break for IRInterpreter
### What is this PR for?
In ZEPPELIN-4562, I fix the googlevis issue, but cause the line break
missing. In this PR, I will only make html output when it contains javascript
related code
https://github.com/apache/zeppelin/compare/master...zjffdu:ZEPPELIN-4590?expand=1#diff-ab59c27de9983f5da6d2b847d441fff3R173
### What type of PR is it?
[Bug Fix ]
### Todos
* [ ] - Task
### What is the Jira issue?
* https://issues.apache.org/jira/browse/ZEPPELIN-4590
### How should this be tested?
Unit test is added
### Screenshots (if appropriate)

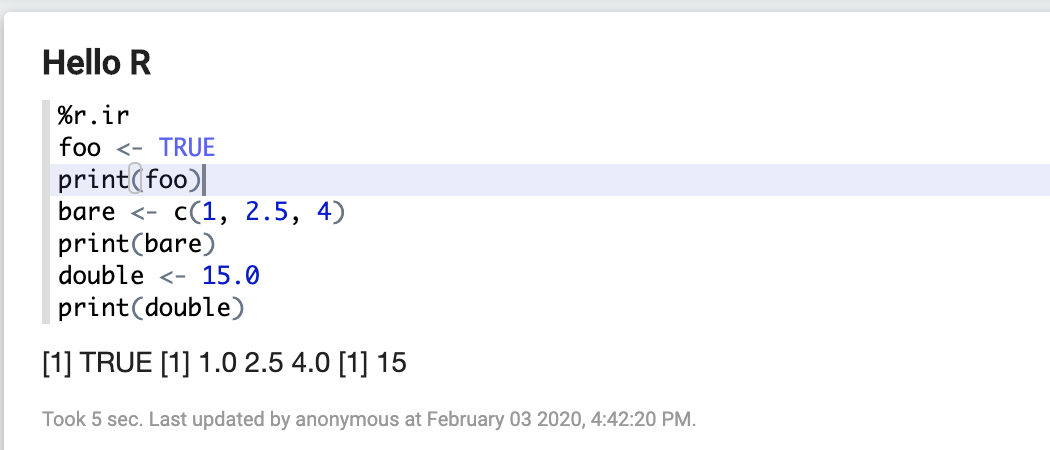

* Before

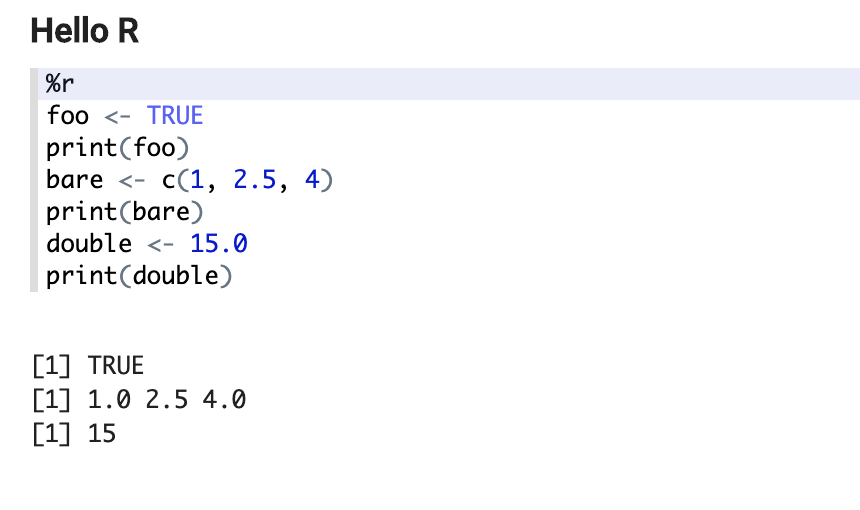

* After
### Questions:
* Does the licenses files need update? No
* Is there breaking changes for older versions? No
* Does this needs documentation? No
Author: Jeff Zhang <zjf...@apache.org>
Closes #3627 from zjffdu/ZEPPELIN-4590 and squashes the following commits:
52c415a72 [Jeff Zhang] [ZEPPELIN-4590]. Miss line break for IRInterpreter
---
.../org/apache/zeppelin/r/RInterpreterTest.java | 18 +++++++++++++--
.../zeppelin/spark/SparkInterpreterTest.java | 18 +++++++--------
.../zeppelin/jupyter/JupyterKernelClient.java | 5 +++++
.../zeppelin/jupyter/JupyterKernelInterpreter.java | 5 -----
.../main/resources/grpc/jupyter/kernel_client.py | 13 ++++++-----
.../main/resources/grpc/jupyter/kernel_server.py | 2 ++
.../org/apache/zeppelin/jupyter/IRKernelTest.java | 26 +++++++++++++++++-----
7 files changed, 61 insertions(+), 26 deletions(-)
diff --git a/rlang/src/test/java/org/apache/zeppelin/r/RInterpreterTest.java
b/rlang/src/test/java/org/apache/zeppelin/r/RInterpreterTest.java
index 97b9844..1652858 100644
--- a/rlang/src/test/java/org/apache/zeppelin/r/RInterpreterTest.java
+++ b/rlang/src/test/java/org/apache/zeppelin/r/RInterpreterTest.java
@@ -30,6 +30,7 @@ import org.junit.After;
import org.junit.Before;
import org.junit.Test;
+import java.io.IOException;
import java.util.HashMap;
import java.util.Properties;
@@ -64,13 +65,26 @@ public class RInterpreterTest {
}
@Test
- public void testSparkRInterpreter() throws InterpreterException,
InterruptedException {
+ public void testSparkRInterpreter() throws InterpreterException,
InterruptedException, IOException {
InterpreterResult result = rInterpreter.interpret("1+1",
getInterpreterContext());
assertEquals(InterpreterResult.Code.SUCCESS, result.code());
assertTrue(result.message().get(0).getData().contains("2"));
- // plotting
InterpreterContext context = getInterpreterContext();
+ result = rInterpreter.interpret("foo <- TRUE\n" +
+ "print(foo)\n" +
+ "bare <- c(1, 2.5, 4)\n" +
+ "print(bare)\n" +
+ "double <- 15.0\n" +
+ "print(double)", context);
+ assertEquals(InterpreterResult.Code.SUCCESS, result.code());
+ assertTrue(result.toString(),
+ result.message().get(0).getData().contains("[1] TRUE\n"
+
+ "[1] 1.0 2.5 4.0\n" +
+ "[1] 15\n"));
+
+ // plotting
+ context = getInterpreterContext();
context.getLocalProperties().put("imageWidth", "100");
result = rInterpreter.interpret("hist(mtcars$mpg)", context);
assertEquals(InterpreterResult.Code.SUCCESS, result.code());
diff --git
a/spark/interpreter/src/test/java/org/apache/zeppelin/spark/SparkInterpreterTest.java
b/spark/interpreter/src/test/java/org/apache/zeppelin/spark/SparkInterpreterTest.java
index 441af36..a15b046 100644
---
a/spark/interpreter/src/test/java/org/apache/zeppelin/spark/SparkInterpreterTest.java
+++
b/spark/interpreter/src/test/java/org/apache/zeppelin/spark/SparkInterpreterTest.java
@@ -198,15 +198,6 @@ public class SparkInterpreterTest {
").toDF()", getInterpreterContext());
assertEquals(InterpreterResult.Code.SUCCESS, result.code());
- // create dataset from case class
- context = getInterpreterContext();
- result = interpreter.interpret("case class Person(id:Int, name:String,
age:Int, country:String)\n" +
- "val df2 = spark.createDataFrame(Seq(Person(1, \"andy\", 20,
\"USA\"), " +
- "Person(2, \"jeff\", 23, \"China\"), Person(3, \"james\", 18,
\"USA\")))\n" +
- "df2.printSchema\n" +
- "df2.show() ", context);
- assertEquals(InterpreterResult.Code.SUCCESS, result.code());
-
// spark version
result = interpreter.interpret("sc.version", getInterpreterContext());
assertEquals(InterpreterResult.Code.SUCCESS, result.code());
@@ -229,6 +220,15 @@ public class SparkInterpreterTest {
"| 2|null|\n" +
"+---+----+"));
} else if (version.contains("String = 2.")) {
+ // create dataset from case class
+ context = getInterpreterContext();
+ result = interpreter.interpret("case class Person(id:Int, name:String,
age:Int, country:String)\n" +
+ "val df2 = spark.createDataFrame(Seq(Person(1, \"andy\", 20,
\"USA\"), " +
+ "Person(2, \"jeff\", 23, \"China\"), Person(3, \"james\", 18,
\"USA\")))\n" +
+ "df2.printSchema\n" +
+ "df2.show() ", context);
+ assertEquals(InterpreterResult.Code.SUCCESS, result.code());
+
result = interpreter.interpret("spark", getInterpreterContext());
assertEquals(InterpreterResult.Code.SUCCESS, result.code());
diff --git
a/zeppelin-jupyter-interpreter/src/main/java/org/apache/zeppelin/jupyter/JupyterKernelClient.java
b/zeppelin-jupyter-interpreter/src/main/java/org/apache/zeppelin/jupyter/JupyterKernelClient.java
index 0e0902b..a551d85 100644
---
a/zeppelin-jupyter-interpreter/src/main/java/org/apache/zeppelin/jupyter/JupyterKernelClient.java
+++
b/zeppelin-jupyter-interpreter/src/main/java/org/apache/zeppelin/jupyter/JupyterKernelClient.java
@@ -168,6 +168,11 @@ public class JupyterKernelClient {
curOutput.getType() != InterpreterResult.Type.TEXT) {
interpreterOutput.write("%text ".getBytes());
}
+ // explicitly use html output for ir kernel in some cases.
otherwise some
+ // R packages doesn't work. e.g. googlevis
+ if (executeResponse.getOutput().contains("<script
type=\"text/javascript\">")) {
+ interpreterOutput.write("\n%html ".getBytes());
+ }
interpreterOutput.write(executeResponse.getOutput().getBytes());
}
interpreterOutput.getInterpreterOutput().flush();
diff --git
a/zeppelin-jupyter-interpreter/src/main/java/org/apache/zeppelin/jupyter/JupyterKernelInterpreter.java
b/zeppelin-jupyter-interpreter/src/main/java/org/apache/zeppelin/jupyter/JupyterKernelInterpreter.java
index d0e9348..d1dc351 100644
---
a/zeppelin-jupyter-interpreter/src/main/java/org/apache/zeppelin/jupyter/JupyterKernelInterpreter.java
+++
b/zeppelin-jupyter-interpreter/src/main/java/org/apache/zeppelin/jupyter/JupyterKernelInterpreter.java
@@ -245,11 +245,6 @@ public class JupyterKernelInterpreter extends
AbstractInterpreter {
interpreterOutput.setInterpreterOutput(context.out);
jupyterKernelClient.setInterpreterContext(context);
try {
- // always use html output for ir kernel. otherwise some R packages
doesn't work.
- // e.g. googlevis
- if (getKernelName().equals("ir")) {
- context.out.write("%html\n");
- }
ExecuteResponse response =
jupyterKernelClient.stream_execute(ExecuteRequest.newBuilder().setCode(st).build(),
interpreterOutput);
diff --git
a/zeppelin-jupyter-interpreter/src/main/resources/grpc/jupyter/kernel_client.py
b/zeppelin-jupyter-interpreter/src/main/resources/grpc/jupyter/kernel_client.py
index ac7b1e0..b9684e9 100644
---
a/zeppelin-jupyter-interpreter/src/main/resources/grpc/jupyter/kernel_client.py
+++
b/zeppelin-jupyter-interpreter/src/main/resources/grpc/jupyter/kernel_client.py
@@ -23,14 +23,17 @@ import kernel_pb2_grpc
def run():
channel = grpc.insecure_channel('localhost:50053')
stub = kernel_pb2_grpc.JupyterKernelStub(channel)
- response = stub.execute(kernel_pb2.ExecuteRequest(code="import time\nfor i
in range(1,4):\n\ttime.sleep(1)\n\tprint(i)\n" +
- "%matplotlib
inline\nimport matplotlib.pyplot as
plt\ndata=[1,1,2,3,4]\nplt.figure()\nplt.plot(data)"))
+ response = stub.execute(kernel_pb2.ExecuteRequest(code="""
+library(googleVis)
+df=data.frame(country=c("US", "GB", "BR"),
+ val1=c(10,13,14),
+ val2=c(23,12,32))
+Bar <- gvisBarChart(df)
+print(Bar, tag = 'chart')
+ """))
for r in response:
print("output:" + r.output)
- response = stub.execute(kernel_pb2.ExecuteRequest(code="range?"))
- for r in response:
- print(r)
if __name__ == '__main__':
run()
diff --git
a/zeppelin-jupyter-interpreter/src/main/resources/grpc/jupyter/kernel_server.py
b/zeppelin-jupyter-interpreter/src/main/resources/grpc/jupyter/kernel_server.py
index ac11ea3..f2e361d 100644
---
a/zeppelin-jupyter-interpreter/src/main/resources/grpc/jupyter/kernel_server.py
+++
b/zeppelin-jupyter-interpreter/src/main/resources/grpc/jupyter/kernel_server.py
@@ -59,6 +59,8 @@ class KernelServer(kernel_pb2_grpc.JupyterKernelServicer):
def _output_hook(msg):
msg_type = msg['header']['msg_type']
content = msg['content']
+ # print("******************")
+ # print(msg)
outStatus, outType, output = kernel_pb2.SUCCESS, None, None
# prepare the reply
if msg_type == 'stream':
diff --git
a/zeppelin-jupyter-interpreter/src/test/java/org/apache/zeppelin/jupyter/IRKernelTest.java
b/zeppelin-jupyter-interpreter/src/test/java/org/apache/zeppelin/jupyter/IRKernelTest.java
index 08d7c5a..8be3507 100644
---
a/zeppelin-jupyter-interpreter/src/test/java/org/apache/zeppelin/jupyter/IRKernelTest.java
+++
b/zeppelin-jupyter-interpreter/src/test/java/org/apache/zeppelin/jupyter/IRKernelTest.java
@@ -87,10 +87,26 @@ public class IRKernelTest {
assertEquals(InterpreterResult.Code.ERROR, result.code());
resultMessages = context.out.toInterpreterResultMessage();
assertEquals(1, resultMessages.size());
- assertEquals(result.toString(), InterpreterResult.Type.HTML,
resultMessages.get(0).getType());
+ assertEquals(result.toString(), InterpreterResult.Type.TEXT,
resultMessages.get(0).getType());
assertTrue(resultMessages.toString(),
resultMessages.get(0).getData().contains("object 'unknown_var' not
found"));
+ context = getInterpreterContext();
+ result = interpreter.interpret("foo <- TRUE\n" +
+ "print(foo)\n" +
+ "bare <- c(1, 2.5, 4)\n" +
+ "print(bare)\n" +
+ "double <- 15.0\n" +
+ "print(double)", context);
+ assertEquals(InterpreterResult.Code.SUCCESS, result.code());
+ resultMessages = context.out.toInterpreterResultMessage();
+ assertEquals(1, resultMessages.size());
+ assertEquals(result.toString(), InterpreterResult.Type.TEXT,
resultMessages.get(0).getType());
+ assertTrue(resultMessages.toString(),
+ resultMessages.get(0).getData().contains("[1] TRUE\n" +
+ "[1] 1.0 2.5 4.0\n" +
+ "[1] 15\n"));
+
// plotting
context = getInterpreterContext();
result = interpreter.interpret("hist(mtcars$mpg)", context);
@@ -122,11 +138,11 @@ public class IRKernelTest {
"print(Bar, tag = 'chart')", context);
assertEquals(InterpreterResult.Code.SUCCESS, result.code());
resultMessages = context.out.toInterpreterResultMessage();
- assertEquals(1, resultMessages.size());
+ assertEquals(2, resultMessages.size());
assertEquals(resultMessages.toString(),
- InterpreterResult.Type.HTML, resultMessages.get(0).getType());
- assertTrue(resultMessages.get(0).getData(),
- resultMessages.get(0).getData().contains("javascript"));
+ InterpreterResult.Type.HTML, resultMessages.get(1).getType());
+ assertTrue(resultMessages.get(1).getData(),
+ resultMessages.get(1).getData().contains("javascript"));
}
}
