The following page has been changed by MichaelJouravlev:
http://wiki.apache.org/struts/StrutsTerminology

------------------------------------------------------------------------------
- This is a stub. Describe Struts Terminology here.
+ == Front Controller pattern ==
+
+ "The Front Controller consolidates all request handling by channeling
requests through a single handler object. This object can carry out common
behavior, which can be modified at runtime with decorators. The handler then
dispatches to command objects for behavior particular to a request." [1]
+
+ "Front Controller channels all requests through a single ''controller''. The
controller itself is usually implemented in two parts: a handler and a
hierarchy of ''commands''. [3]
+
+ "The handler has two responsibilities:
+  * Retrieve parameters. The handler receives the HTTP Post or Get request
from the Web server and retrieves relevant parameters from the request.
+  * Select commands. The handler uses the parameters from the request first to
choose the correct command and then to transfers control to the command for
processing.
+ The commands themselves are also part of the controller. The commands
represent the specific actions as described in the Command pattern." [3]
+

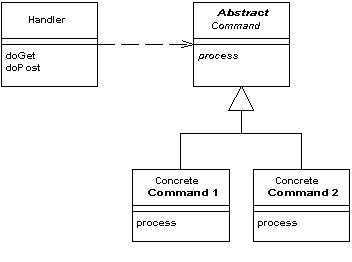

+ http://www.martinfowler.com/eaaCatalog/frontController-sketch.gif
+
+ Above: diagram by Martin Fowler
+
+
+
http://msdn.microsoft.com/library/en-us/dnpatterns/html/Des_FrontController_Fig02.gif
+
+ Above: diagram from MSDN pattern catalog
+
+ Struts is a Front Controller framework.
+
+ == Command pattern ==
+
+ "The Command pattern lets objects make requests of unspecified application
objects by turning the request itself into an object. This object can be stored
and passed around like other objects. The key to this pattern is an abstract
Command class, which declares an interface for executing operations. In the
simplest form this interface includes an abstract Execute operation."[2]
+
+ Struts employs Command pattern to process requests with command objects like
Action and Command.
+
+ == Chain of Responsibility pattern ==
+
+ "Chain of Responsibility pattern allows to decouple senders and receivers by
giving multiple objects a chance to handle a request. The request gets passed
along a chain of objects until one of them handles it. [2]
+
+ "To forward the request along the chain, and to ensure receivers remain
implicit, each object on the chain shares a common interface for handling
requests and for accessing its successor on the chain." [2]
+
+ Struts employs Chain of Responsibility pattern to make request processing
more flexible. Rather than subclassing a monolithic request processor object,
it is possible just to replace, insert or remove Commands, if needed in order
to extend or streamline the request processing flow.
+
+ == Command Object ==
+
+ A command represents an individual unit of work.
+
+ In Struts prior to 1.3 a command is implemented with an instance of Action
class. Only one command can be defined per request. Chaining of commands is not
supported. When commands are chained, the request processor code is executed
once again, resulting in undesired behavior.
+
+ In Struts 1.3 a command can be implemented as an instance of Command class or
as a series of Command classes combined into a chain, in addition to Action
class. Chaining of Command objects is a recommended practice in Struts 1.3
intended to enhance the request processing flow.
+
+ After the command object finishes processing the request, it usually usually
generates output by choosing which view to render. [3]

  == Struts Terms ==

@@ -8, +52 @@


  ''JSP action'', ''JSP action tag'', ''action tag'' -- one of JSP tag
elements: action, directive, declaration, expression, scriptlet, comment.
Follows the XML format and always begins with <jsp:... />. JSP provides certain
functionality through JSP actions such as finding or instantiating a !JavaBean,
or navigating to an URL. JSP actions are rarely called "actions" in context of
Struts/JSP application to avoid ambiguity.

+ == References ==
+  * [1] [http://www.martinfowler.com/eaaCatalog/frontController.html Front
Controller, Martin Fowler]
+  * [2]
[http://www.amazon.com/gp/product/0201633612/sr=1-1/qid=1153258356/ref=pd_bbs_1/104-0581018-0788724?ie=UTF8&s=books
 Design Patterns] - Design Patterns: Elements of Reusable Object-Oriented
Software (Addison-Wesley)
+  * [3]
[http://msdn.microsoft.com/practices/apptype/webapps/default.aspx?pull=/library/en-us/dnpatterns/html/DesFrontController.asp
 Front Controller Pattern, MSDN]
+
